Pre-requisites:
Jdk-1.8
Maven -3.6.0+
JDK Setup
Step-1: Download JDK
Download JDK from the following link:
https://www.dropbox.com/s/yocl0brjlslxrjw/jdk-8u331-linux-x64.tar?dl=0
Can copy from local to the remote machine using the following
scp jdk-8u331-linux-x64.tar ${username}@${host}:~/
Step-2: Create a Directory
sudo mkdir /usr/lib/jvm
Step-3: Change Directory
cd /usr/lib/jvm
Step-4: Unzip
sudo tar -xvf ~/jdk-8u331-linux-x64.tar.gz
OR
To install OpenJDK, skip the above steps and run the following command
sudo apt update
sudo apt install openjdk-8-jdk
For JDK 11
sudo apt install openjdk-11-jdk
Step-5: Edit the environment file
sudo vi /etc/environment
Environment file after modification
PATH="/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/usr/lib/jvm/jdk1.8.0_331/bin:/usr/lib/jvm/jdk1.8.0_331/db/bin:/usr/lib/jvm/jdk1.8.0_331/jre/bin"
J2SDKDIR="/usr/lib/jvm/jdk1.8.0_331"
J2REDIR="/usr/lib/jvm/jdk1.8.0_331/jre"
JAVA_HOME="/usr/lib/jvm/jdk1.8.0_331"
DERBY_HOME="/usr/lib/jvm/jdk1.8.0_331/db"
Step-6: Execute the following commands to reflect the changes above
Note: Paths will vary depending on your java installation directory
sudo update-alternatives --install "/usr/bin/java" "java" "/usr/lib/jvm/jdk1.8.0_331/bin/java" 0
sudo update-alternatives --install "/usr/bin/javac" "javac" "/usr/lib/jvm/jdk1.8.0_331/bin/javac" 0
sudo update-alternatives --set java /usr/lib/jvm/jdk1.8.0_331/bin/java
sudo update-alternatives --set javac /usr/lib/jvm/jdk1.8.0_331/bin/javac
Step-7: Confirm installation with checking java version
java -version
Maven Setup
Step-1: Update the package index
sudo apt update
Step-2: Install maven
sudo apt install maven
Step-3: Check the maven version
mvn -version
Elasticsearch Setup
Step-1: Import the PGP key for Elastic:
wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -
Step-2: Install the apt-transport-https package:
sudo apt-get install apt-transport-https
Step-3: Add the Elastic repository to your system’s repository list:
echo "deb https://artifacts.elastic.co/packages/7.x/apt stable main" | sudo tee –a /etc/apt/sources.list.d/elastic-7.x.list
Step-4: Update package:
sudo apt-get update
Step-5: Install elasticsearch:
sudo apt-get install elasticsearch
Step-6: Configure elasticsearch by editing the following file
sudo vi /etc/elasticsearch/elasticsearch.yml

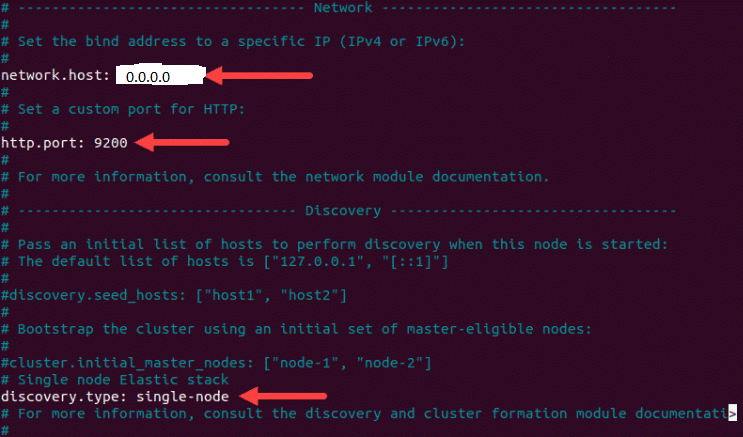

Update the following fields as below
network.host: 0.0.0.0
http.port: 9200
Add the following
discovery.type: single-node
Step-7: Start elasticsearch service
sudo systemctl start elasticsearch.service
Step-8: Enable Elasticsearch to start on boot
sudo systemctl enable elasticsearch.service
Step-8: Test Elasticsearch
curl -X GET "localhost:9200"
A successful configuration will show result as below
Kibana Setup
Step-1: Install Kibana
sudo apt-get install kibana
Step-2: Configure kibana by updating the following file
sudo vi /etc/kibana/kibana.yml
Uncomment (by removing #) the following properties and configure as follows
server.port: 5601
server.host: 0.0.0.0
elasticsearch.hosts: ["http://localhost:9200"]
After modification it will look like this
Step-3: Start Kibana
sudo systemctl start kibana
Step-4: Enable Kibana to start on boot
sudo systemctl enable kibana
Step-5: Allow Traffic on Port 5601
sudo ufw allow 5601/tcp
Step-6: Test Kibana
Logstash Setup
Step-1: Install Logstash
sudo apt-get install logstash
Step-2: Start Logstash
sudo systemctl start logstash
Step-3: Enable Logstash
sudo systemctl enable logstash

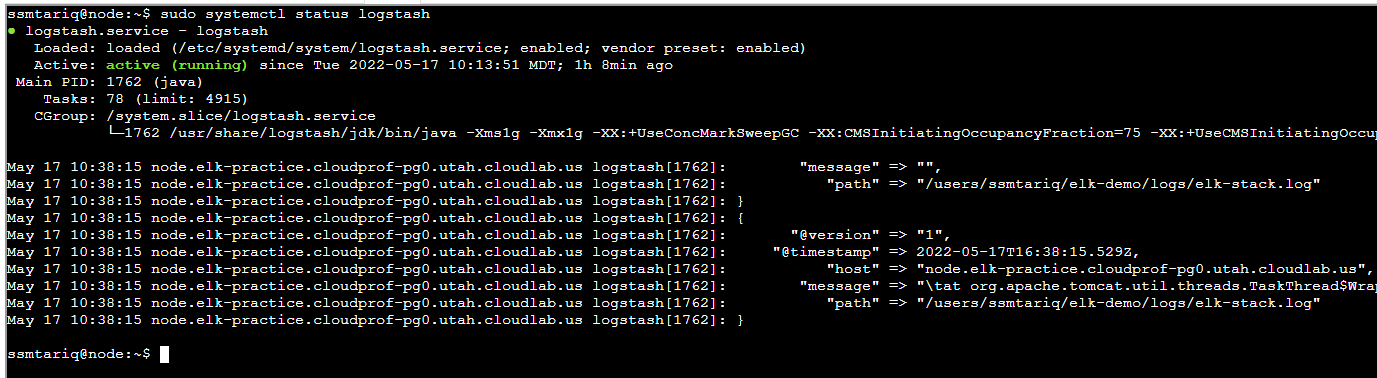

Step-4: Check the status of Logstash
sudo systemctl status logstash
It will look like this
Step-5: Configure Logstash
All the configuration files must be placed at /etc/logstash/conf.d/
Create new configuration file using following command
sudo vi /etc/logstash/conf.d/logstash.conf
Add the following configuration, save and close the file
input {
file {
path => "/users/ssmtariq/elk-demo/logs/elk-stack.log"
start_position => "beginning"
}
}
output {
elasticsearch {
hosts => ["localhost:9200"]
}
stdout { codec => rubydebug }
}
Note: The path will be exact full path of the log file
Elasticsearch Index Retrieval
After running the application all the index’s of elasticsearch can be found using the following url
http://{host}:9200/_cat/indices
